उत्पाद विवरण:
|
| रूप: | वितरक | दबाव: | 0.1-4 बार |
|---|---|---|---|
| कामकाजी माध्यम: | पानी | डीएन: | Φ11 |
| वोल्टेज: | एसी 220 वी / 50 हर्ट्ज | शैली: | प्रवेशनी प्रकार |

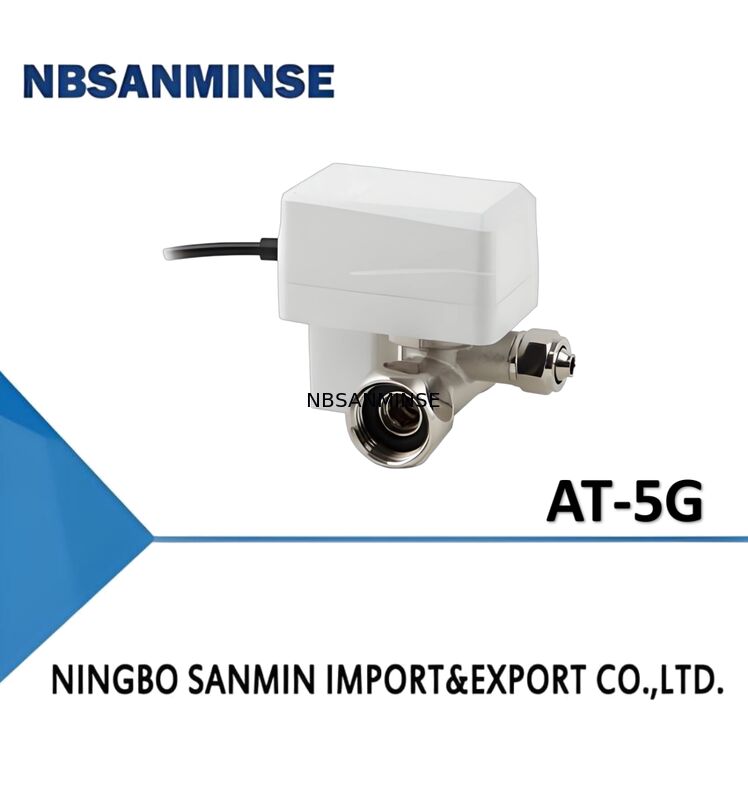

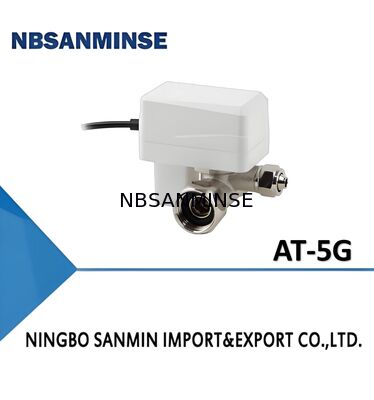

AT-5G(Technical Parameters):
| Form | Normally Closed |
| Pressure | 0-0.8 MPa |
| Working medium | Water |
| DN | Φ6.5 |
| Voltage | DC12V |
| Connection | Cannula Type, G1/2‘’ |

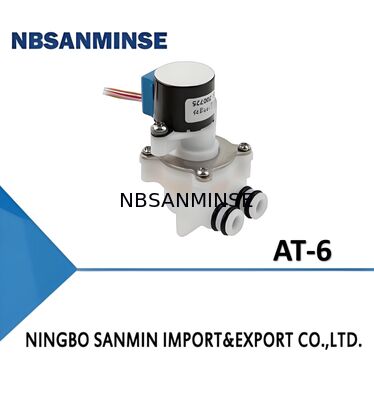

AT-6(Technical Parameters):
| Form | Normally Closed |
| Pressure | 0-0.8 MPa (Closed at 0 Position / Flow at 0 Position) |
| Working medium | Water |
| Voltage | DC12V, DC24V, DC36V |
| Connection | Cannula Type |

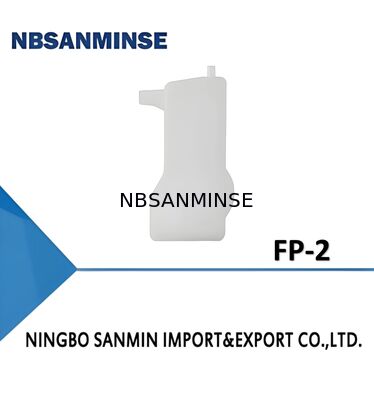

FP-2(Technical Parameters):
| Form | Distributor |
| Pressure | 0.1-4 bar |
| Working medium | Water |
| DN | Φ11 |
| Voltage | AC 220V / 50Hz |
| Connection | Cannula Type |
SG-1(Technical Parameters):
| Form | Air Outlet Assembly |
| Pressure | 0.1-4 bar |
| Working medium | Gas, Water |
| DN | Φ11 |
| Applicable Ambient Temperature | Normal Temperature |
| Service Life | 50,000 Cycles |
JYQ-2(Technical Parameters):
| Form | PTC Heating |
| Applicable Ambient Temperature | 0-100℃ |
| Applicable Medium Temperature | 0-100℃ |
| Working Medium | Air |
| Overheat Protection | 150℃ |
| Rated Voltage | DC12V, 0.15A |
| Connection Type | Fan Connector Model: XH-2A / PTC Connector Model: VH-3Y |
