उत्पाद विवरण:
|
| शक्ति: | 4.5-5W | डीएन: | Φ8.5 |
|---|---|---|---|
| अंब. अस्थायी: | 0-50℃ | दबाव: | 0-0.02बार |

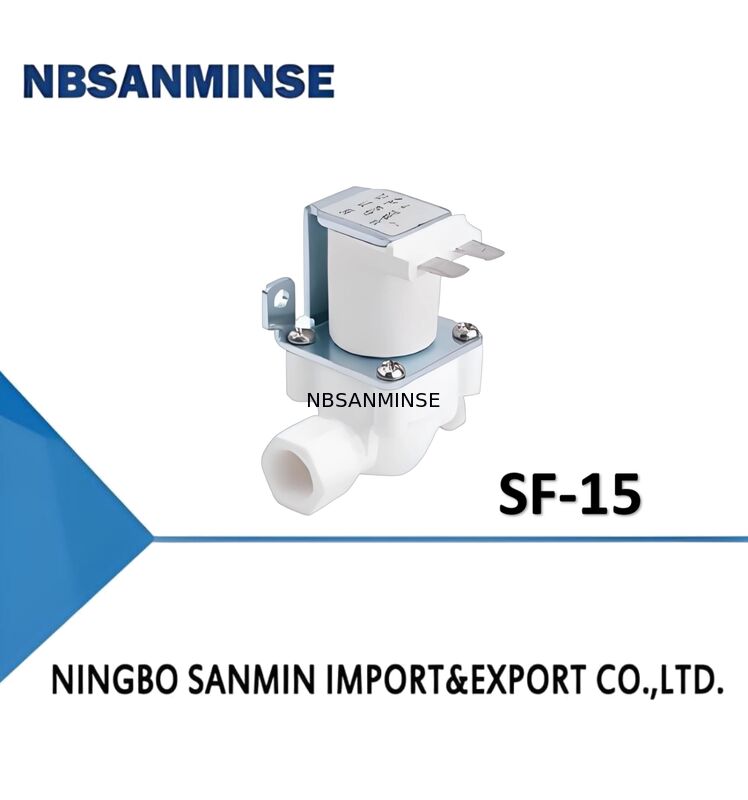

SF-15(Technical Parameters):
| Form | Normally closed |
| Pressure | 0.2-8bar |
| Working medium | water |
| DN | Φ11 |
| Voltage |
DC12V, DC24V, DC36V, AC110V,AC120V, AC230V |
| Connection | NPT1/4'' |
(2/3way valveN.C.)

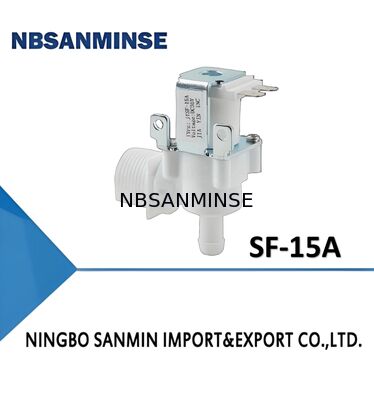

SF-15A(Technical Parameters):
| Form | Normally closed |
| Pressure | 0.2-8bar |
| Working medium | water |
| DN | Φ11 |
| Voltage |
DC12V, DC24V, DC36V, AC110V,AC120V, AC230V |
| Connection | G3/4'' |
(2/2way valveN.C.)
SF-15B(Technical Parameters):
| Form | Normally closed |
| Pressure | 0.03bar |
| Working medium | water |
| DN | Φ8 |
| Voltage | DC12V, DC24V |
| Connection | (Cannula) |
(2/2way valveN.C.)

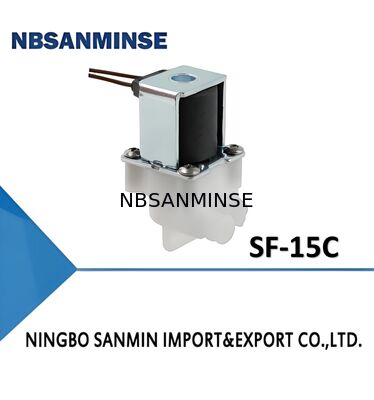

SF-15C(Technical Parameters):
| Form | Normally closed |
| Pressure | 0-0.02bar |
| Working medium | water |
| Fluid Temperature | 0-80℃ |
| Amb. Temperature | 0-50℃ |
| Power | 4.5-5W |
| DN | Φ8.5 |
| Voltage | DC36V |
| Connection | (Cannula) |
(2/2way valveN.C.)
SF-15C03(Technical Parameters):
| Form |
Normally Closed Water Solenoid Valve 0-2bar (6.9bar-300ml/min-1500ml/min) |
| Pressure | 0-0.02bar |
| Working medium | water |
| Fluid Temperature | 0-80℃ |
| Amb. Temperature | 0-50℃ |
| Power | 4.5-5W |
| DN | Φ8.5 |
| Voltage |
DC12V, DC24V, DC36V, AC110V,AC120V, AC230V |
| Connection | (Cannula) |
(2/2way valveN.C.)
