उत्पाद विवरण:
|
| प्रूफ का दबाव: | 15(बार) | कुशनिंग फॉर्म: | कुशन पैड |
|---|---|---|---|
| वर्तमान धारण करना: | AC220V,50Hz:0.015A | संचालन तापमान: | -25 ~ +80(℃) |
| तेल आपूर्ति: | तेल आपूर्ति | सामग्री: | SS316 SS304 |
| प्रमुखता देना: | 10Y-3 Model Pneumatic Air Cylinder,15 Bar Proof Pressure Air Cylinder,Cushion Pad Cushioning Pneumatic Cylinder |
||

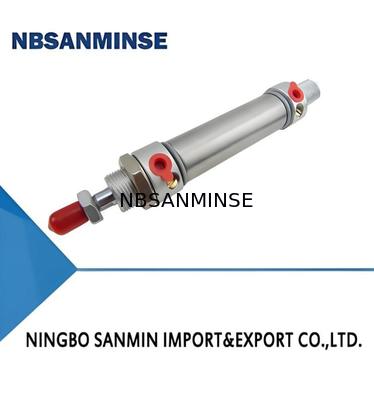

1.Stainless steel cylinder block, with end caps connected by a new riveting process, featuring small axial dimensions, light weight and elegant appearance.
2.Good performance, high reliability and strong corrosion resistance.
3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.
4.Both ends adopt adjustable speed pneumatic cushioning structure, suitable for occasions requiring large cushioning.
II. Model
Standard Type
With Switch Type
With Valve Type
With Valve and Switch Type
| ① | Cylinder Model | See Cylinder Performance Table for details | |||
| ② | Installation Form | See the diagram on the next page for details | |||
| ⑤ | Rear Cover Form | See the diagram on the next page for details | |||
| Code | S | P | K | ||
| Name | Basic Type | Axial Port | FD-13RV | ||
| ⑥ | Valve Operation Mode | A: Push Type when Energized | |||
| B: Pull Type when Energized | |||||
| ⑦ | Valve Operating Voltage | 5:AC220V 50HZ | |||
| 8:DC24V | |||||
| ⑧ | Switch Model | See Switch Performance Table for details | |||
| Code | K | H | |||
| Name | FD-03R | FD-13RV | |||
| ⑨ | Number of Switches | ||||
| ⑩ | Rod End Connection Accessories | See Diagram 10Y-1 for details | |||
III. Graphical Symbols and Appearance
