उत्पाद विवरण:
|
| परिचालन दाब: | 1.5~8(बार) | परिचालन गति: | 100~500(मिमी/सेकेंड) |
|---|---|---|---|
| अधिकतम स्ट्रोक: | 600 (मिमी) | संचालन तापमान: | -25 ~ +80(℃) |
| सिलेंडर के छेद: | 80(मिमी) | सामग्री: | अल्युमीनियम |

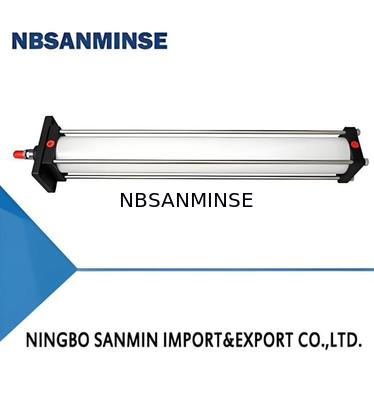

| प्रमुखता देना: | JB Model Pneumatic Air Cylinder,1.5-8 Bar Operating Pressure Air Cylinder,100-500 mm/s Operating Speed Pneumatic Cylinder |
||
II. Model
III. Main Technical Parameters
| Cylinder Bore(mm) | 80 | 100 | 125 | 160 | 180 | 200 | 250 | 320 | 400 |
| Maximum Stroke(mm) | 600 | 800 | 1000 | 1250 | 1600 | ||||
| Working Medium | Compressed air that has been purified and contains oil mist | ||||||||
| Operating Temperature Range(℃) | -25～+80(under non-freezing conditions) | ||||||||
| Operating Pressure Range (bar) | 1.5～8 | ||||||||
| Operating Speed Range(mm/s) | 100～500 | ||||||||
IV. Graphical Symbols and Outline Dimensions
