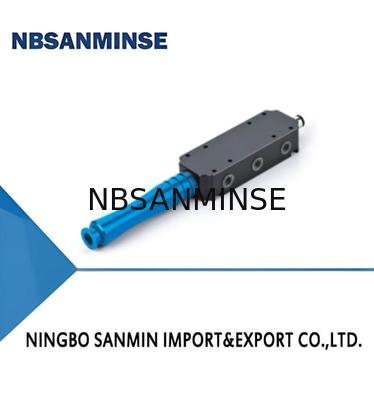

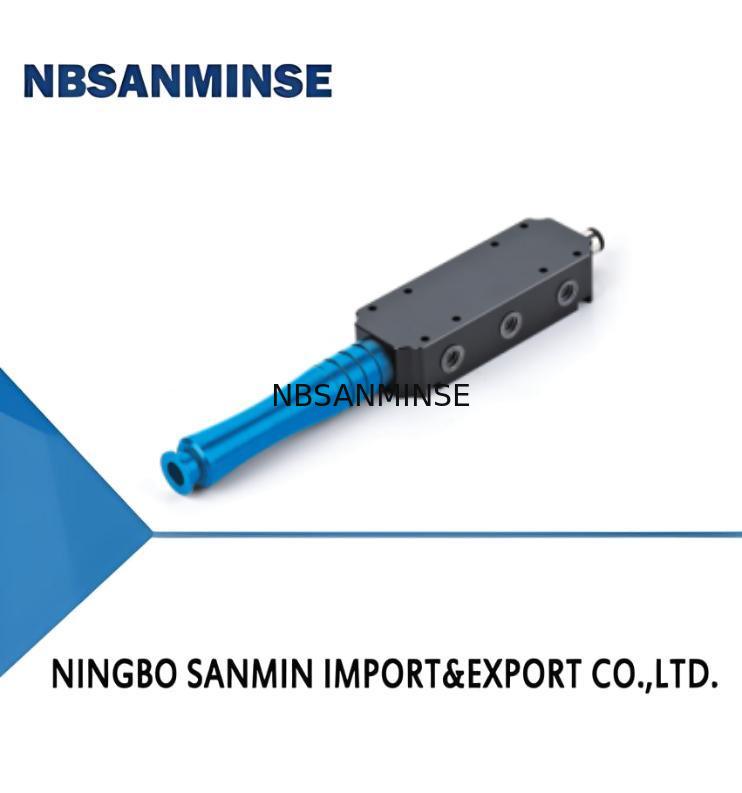

AGX Series Vacuum Generator
AGX Series Vacuum Generator
अब से संपर्क करें

AGX Series Vacuum Generator

Minimum Order Quantity : 100PCS Packaging Details : Plastic bag
Delivery Time : 5-30days Supply Ability : 10000PCS
Place of Origin: CHINA ब्रांड नाम: NBSANMINSE
Model Number: AGX-S32-3

विस्तार जानकारी
Specification: S32-3 （-75kPa） Air supply pressure bar: 4.0
Air consumption NL/min: 120 Max. vacuum level -kPa: 60

उत्पाद विवरण

Features
◇ Fast evacuation, high vaccum level, low air consumption
◇ Built-in vacuum cartridge
◇ Small size, simple structure, groove type installation structure
◇ There are 6 vacuum ports with G1/4 female thread
Advantages
◇ High efficient and energy-saving vacuum generator, can quickly
reach the max. vacuum level
◇ The suitable vacuum generators can be selected according to different
working conditions
◇ Simple installation structure, can be installed quickly
◇ Multiple suction cups can be connected at the same time
◇ Reduce product noise
Applications
◇ The working conditions where multiple suction cups are directly
installed at the same time
◇ Applicable to the working conditions that require fast evacuation
and low air consumption
Structure
◇ Housing can be freely matched with vacuum cartridges with different
performace parameters
◇ The air supply port is directly inserted into the φ8 hose, the vacuum port
is G1/4 female thread
How to order
AGX - S32-3
①        ②
① Series ② Specification
AGX S32-3 (-75kPa)

X40-3 (-95kPa)
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0  10  20  30  40  50  60  70  80  90  Max.
vacuum  level
-kPa
AGX-532-3 4.0  120  350  152  110  64  50  26.7  11.5  -

60

5.0  125  370  185  125  90  50  36.2  27.3  13.9

70

6.0  130  390  210  135  100  65  35.1  30.3  18.3

75
AGX-X40-3 4.5  120  350  175  120  80  44  32.7  24.5  17.8  11.6  3.2  91

5.0  125  360  190  125  95  65  36.0  26.0  17.6  10.8  2.8  95

6.0  135  380  220  130  105  90  54.0  26.0  17.8  9.3  2.2  94
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 10  20  30  40  50  60  70  80  90  Max.
vacuum  level
-kPa
AGX-532-3 4.0  120  0.03  0.08  0.15  0.26  0.44  11.5


60

5.0  125  0.03  0.07  0.13  0.23  0.38  27.3  1.07

70

6.0  130  0.03  0.05  0.10  0.18  0.36  30.3  0.87  - - 75
AGX-X40-3 4.5  120  0.03  0.07  0.13  0.23  0.38  24.5  0.97  1.50  3.25  91

5.0  125  0.03  0.07  0.14  0.21  0.37  26.0  0.99  1.46  3.23  95

6.0  135  0.03  0.05  0.10  0.16  0.27  26.0  0.86  1.45  3.92  94
AGX Series Vacuum Generator 0
