उत्पाद विवरण:
|
| कोड: | 306 | धागा G1: | 1/2 " |
|---|---|---|---|
| दबाव गेज धागा G2: | एम20x1.5 | आकार （मिमी: | L80 H68 R80 |
| नाममात्र दबाव: | 1.6MPA | शक्ति परीक्षण दबाव: | 2.4एमपीए |
| सील परीक्षण दबाव: | 1.6MPA | प्रचालन तापमान: | ≤150 ℃ |
| कार्य माध्यम: | पानी, भाप, तेल | सामग्री: | पीतल |
| प्रमुखता देना: | 1.6 एमपीए तीन-तरफा वाल्व,दबाव गेज तीन-तरफा वाल्व,1.6Mpa 1 2 पीतल के सोलेनोइड वाल्व |
||

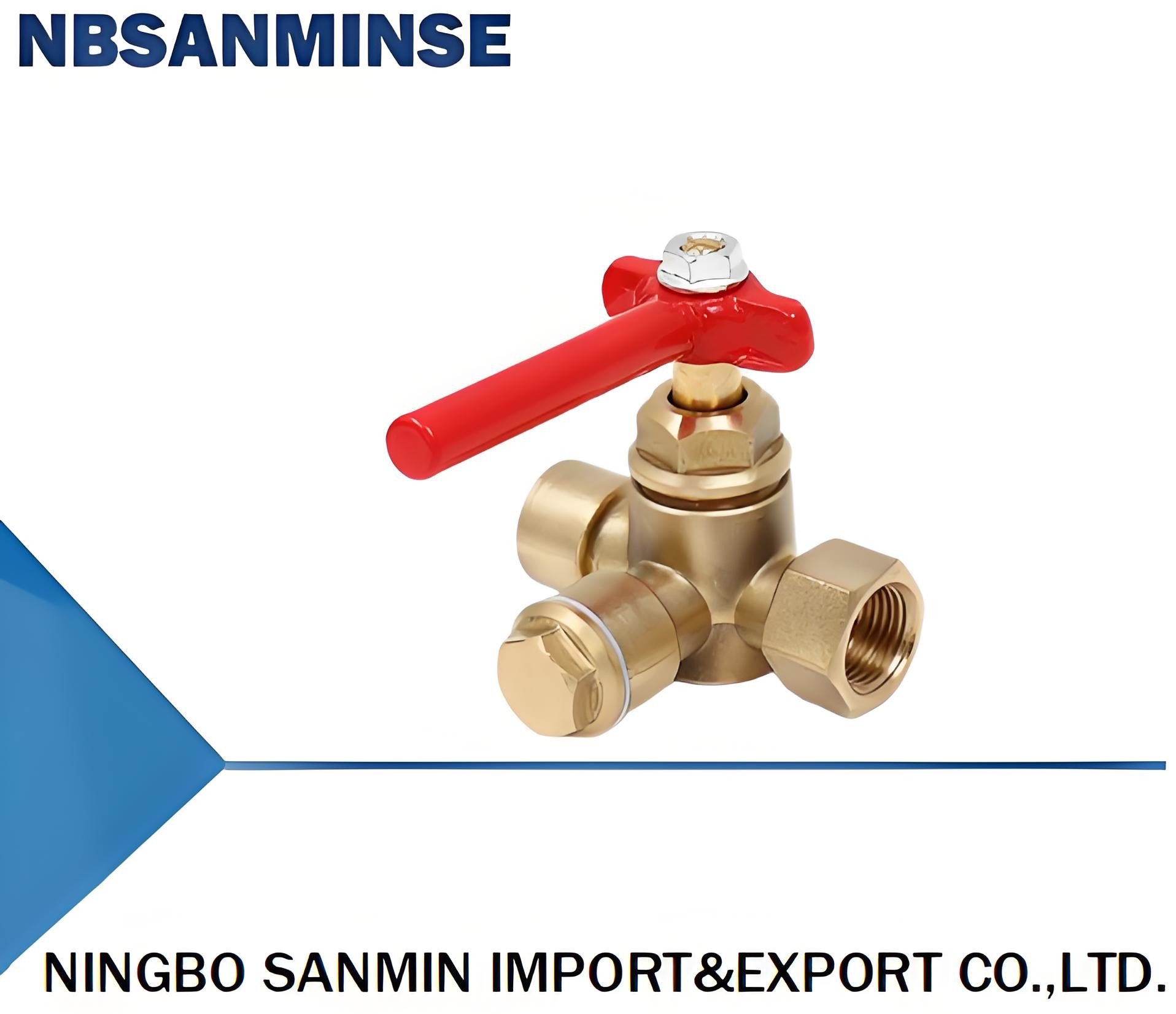

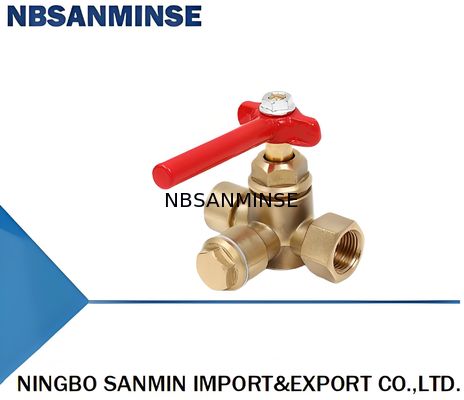

The three-way valve of the 306 pressure gauge can be directly connected to the pressure gauge and is generally used for sealing small flow, high pressure gas or liquid (such as steam, oil) media. Widely used in power plants, steel plants, petroleum, and chemical industries. The pressure gauge three-way valve has the advantages of easy installation and disassembly, tight connection, high fire and explosion resistance, high pressure resistance, and good sealing performance. It is an advanced connection method valve in power plants, oil and chemical equipment, and instrument measurement pipelines.
| code | thread G1 | Pressure gauge thread G2 | size(mm) | ||
| L | H | R | |||
| 306 | 1/2" | M20x1.5 | 80 | 68 | 80 |
| Nominal pressure | 1.6Mpa | ||||
| strength test pressure | 2.4Mpa | ||||
| Seal test pressure | 1.6Mpa | ||||
| operation temperature | ≤150℃ | ||||
| Working medium | Water, steam, oil | ||||
